Camen Motor Products



Cobalt Motor Set-Ups

Camen Cobalt Magnet based Motors and Motor Components are available in a vast array of sizes, configurations and varieties to suit virtually every serious Racer's purposes. Camen Cobalt set-ups are available with magnet lengths from .250 through .440 and magnet heights from .316 to over .500". They are available in configurations from the classic single to to the absolute BIZARRE with possibilities ranging up to (and exceeding) 32 piece magnets. Our Cans, Endbells and Magnets are absolutely of the highest quality available and we're proud to offer the following items for your consideration


Pricing for Cobalt set-ups - regardless the motor/class type (except drag racing) - are as follows:

Single Magnet Set-ups with magnet heights .400" or lower are $160
Single magnet with magnet heights greater than .400 plus all Quad configurations = $175
Tripe Configurations plus 8 & 10mag = $200.
12 - 14 & 16 = $225
18 & 20 = $275
24 thru 32 = $350
**Note - add $10 to the above for Gulliver style set-ups

EuroSport Set-Ups

[EuroSport Set-Ups] The Camen EuroSport/F1 Set-ups are available in any magnet configuration listed above. That includes our latest release and the talk of the Nats..... the "Gulliver Class" Motor. Our set-ups all feature the latest id & od ground .590 id cans except the "Gulliver" which is a .570" id can.

The Gulliver lowers the weight and cg of the motor and softens the torque curve while maintaining overall horsepower. The Gulliver set-ups are available in all the standard magnet configurations above and the can dimensions listed below, however, since the armature diameter is .465, it makes little sense to use a taller can/magnet combination as that defeats the cg gain but taller is available if you want it.

We offer the "Gulliver" for your consideration in all the standard configurations

Some of our more popular standards are:

ES/F1 - 250X400 single magnet for ultra short length armatures - 495 air gap
ES/F1 - 250X400 10 piece magnet for ultra short length armatures - 495 air gap
ES/F1 - 250X400 single magnet for PK (and similar) length armatures - 495 air gap
ES/F1 - 250X400 10 piece magnet for PK (and similar) Length armatures - 495 air gap
EuroSport - 300X400 single magnet for PK (and similar) length armatures - 495 air gap
EuroSport - 300X400 10 piece magnet for PK (and similar) Length armatures - 495 air gap
EuroSport - 300X410 18 piece magnet for PK (and similar) length armatures - 495 air gap
EuroSport - 300X480 18 piece magnet for PK (and similar) Length armatures - 495 air gap
EuroSport - 330X400 (Lee Gilbert style "Small Block") single magnet for PK (and similar) length armatures - 495 air gap
EuroSport - 330X400 (Lee Gilbert style "Small Block") 10 pce magnet for PK (and similar) Length armatures - 495 air gap
EuroSport - 330X415 (Lee Gilbert style "Small Block") 18 pce magnet for PK (and similar) Length armatures - 495 air gap
Numerous other configurations and air gaps are quite doable..... e-mail Joel_camen@yahoo.com with any questions
Click here for pricing

EuroSport Armatures

[The Gulliver Class Armature]

Camen is delighted to re-introduce our EuroSport Armatures in standard .250" and .300" stack lengths and with normal "PK style" commutator spacing or ultra-short for f1 etc. Standard diameters are .480 - .490 AND .455 (Gulliver Class) Other diameters available upon request. All armatures now feature our new proprietary aluminum commutator. It is an engineering marvel that will set new standards of accuracy, performance and durability.

Armatures are $150.00
Please choose from the following winds:
18 turn 24 1/2
18 turn 25
19 turn 25
22 turn 25
38 turn 27
40 turn 28
more to come - ask
**Please note that while the armature pictured has a 2mm shaft, we are in the process of setting up equipment to precisely grind shafts to 1.5mm and the armatures will be shipped with shafts already ground to 1.5mm

Cobalt 12 Set-Ups

[Cobalt-12 Set-Ups]

Cobalt 12 - 350X450 Flat Top Single Magnet
Cobalt 12 - 300X470 Flat Top Quad Magnet
Cobalt 12 - 330X430 Angle Top Quad Magnet
Cobalt 12 - 330X470 Flat Top Quad Magnet
Cobalt 12 - 300X480 Flat Top Triple Magnet
Cobalt 12 - 330X480 Flat Top Triple Magnet
Many other configurations are available..... e-mail Joel_camen@yahoo.com with any questions
Click here for pricing

Group 27 Set-Ups

27Lite - 440X400 single magnet
27Lite - 440X418 single magnet
Grp-27 - 400X470 6mag - equal segments
Grp-27 - 400X480 6mag - "Sliver" center segment
Grp-27 - 400X480 10 piece magnet
Grp-27 - 400X490 14 piece magnet
Grp-27 - 400X460 18 piece magnet
Grp-27 - 400X490 20 piece magnet
Default Air gap for 27's is 506 - many others available
The configuration possibilities are nearly endless for 27's.... e-mail Joel_camen@yahoo.com with any questions
Click here for pricing

Grp-7 (Unlimited) Set-Ups

Grp-27 - 370X470 6mag - equal segments
Grp-27 - 370X480 6mag - "Sliver" center segment
Grp-27 - 370X480 10 piece magnet
Grp-27 - 370X490 14 piece magnet
Grp-27 - 370X460 18 piece magnet
Grp-27 - 370X490 20 piece magnet
Grp-27 - 370X490 24 piece magnet
The configuration possibilities are nearly endless for Grp-7's.... e-mail Joel_camen@yahoo.com with any questions
Click here for pricing

Drag Racing Set-Ups

$200 - Top Fuel Drag - 370X450 Flat Top Quad Magnet - .460 air gap
e-mail Joel_camen@yahoo.com for other configurations


Individual Cobalt Motor Components


[International 15 Endbell]

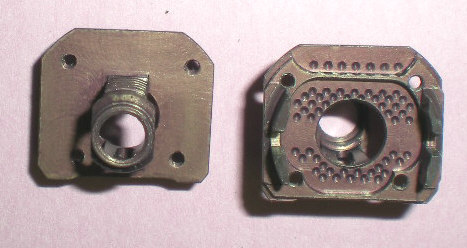

[Cobalt Endbell]

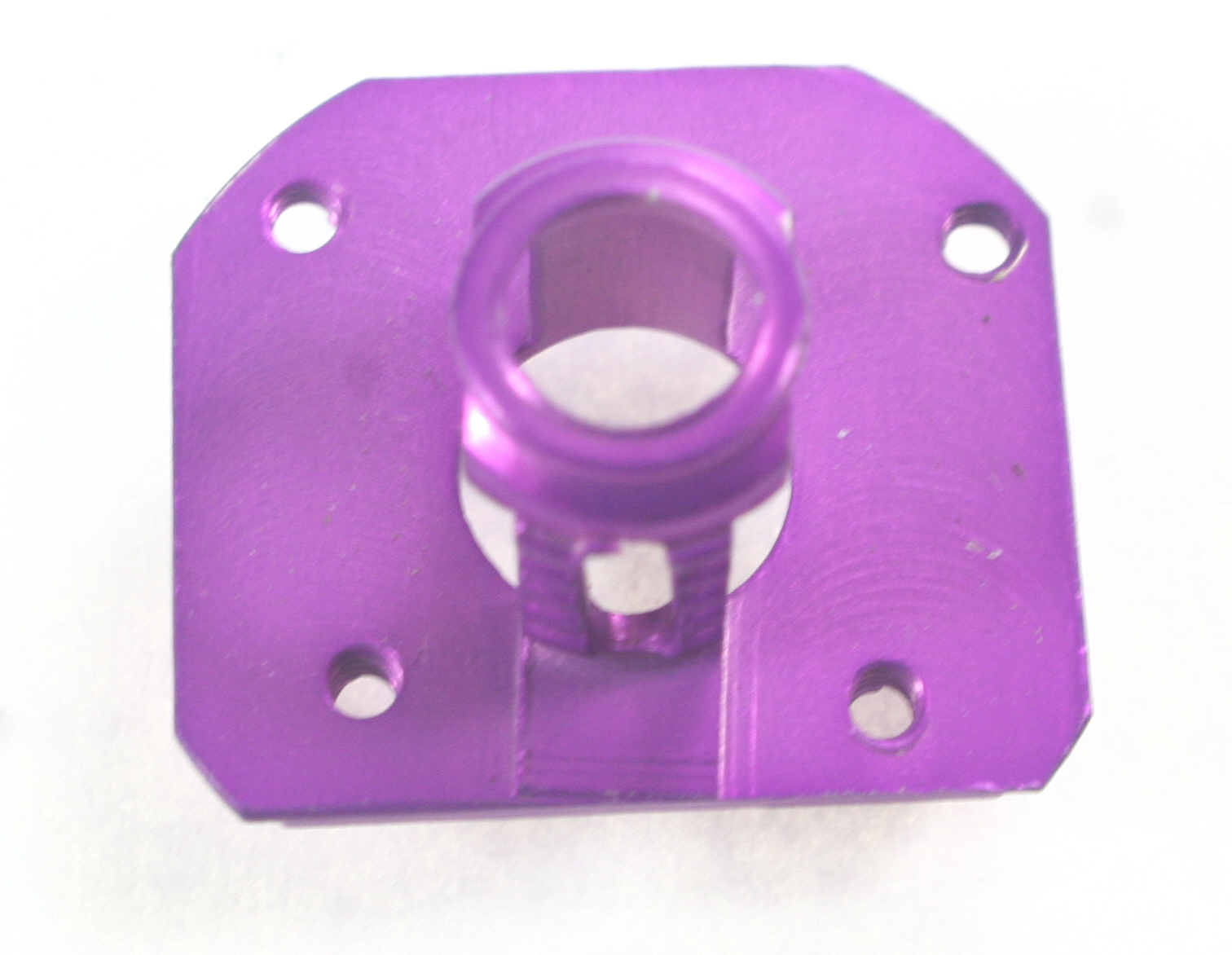

Aluminum Endbells

The unique design of the Camen Endbell featuring internally machined miniature bulkheads top and bottom assure the highest strength/stiffness to weight ratio in the industry and the dimpling process increases overall surface area for improved heat dissipation. Add the finest hard coat anodizing for electrical insulation and you have 'the Camen Endbell'
#1406.10 $24.95 () Long Tower .628" diameter
#1406.11 $29.95 () Long Tower .628" diameter drilled for 4 degree brush advance
#1406.20 $24.95 () Long Tower .590" diameter (EuroSport etc)
#1416.10 $24.95 () International 15 or C-1
#1416.11 $29.95 () International 15 or C-1 drilled for 4 degree brush advance

Cobalt "Strap" Cans

The Camen Strap can is available in a wide variety of configurations to include various heights, lengths and diameters. All feature edm generated blanks in .030" thickness that are hand formed on our proprietary tooling then id and od ground to exacting tolerances. This type of construction provides maximum stiffness of the strap at minimal weight and allows the selection of the very best electrical steel and the ability to orient the grain structure to optimize magnetic properties..... an ability not possible in billet can construction. This construction also allows for maximum flexibility in terms of design and dimension options and because of this, we are able to offer cans for virtually every Cobalt Motor need.
All Strap cans are available with or without windows in the strap and with or without notches on the magnet leading edge. A choice of "notch" types is also available

[click on the image at left for
help in clarifying Can dimensions - note (pre-paint) machine work (id & od grind) on the image at right] [Note the machining (grinding) of inside and outside diameters] Click on the Image at left to veiw Clarifying dimensional Information for Cobalt Magnet based Motor Designs - Note the (pre-paint) id & od machine work on the image to the right. "Customer specs" welcome on all type Strap cans

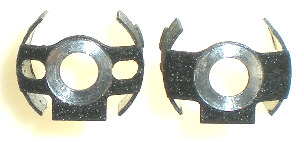

[Can Window Details]



to "Window" or not to "Window"...... and
what about leading edge notches???"

Have it YOUR way!






Strap Can prices are as follows (with or without windows and/or notches):
$24.95 () Basic Can (not id or od ground)
$34.95 () id & od ground
To virtually design your own can(s), you can choose from the options below:

Standard Options For Length of the Magnet Area:
() .260" (Typically used for EuroSport/F1 with .590" id can)
() .300" (Typically used for EuroSport with .590" id can)
() .330" (Typically used for 1:24 EuroSport and Cobalt 12 with different tab lengths and can diameters)
() .355" (Typically used for Cobalt 12)
() .370" (Typically used for Unlimited {Grp-7)
() .385" (Typically used for Unlimited {Grp-7})
() .400" (Typically used {with appropriate tab length} for Grp 27 {400 length magnet})
() .440" (Typically used for Group 27 and G27Lite Motors)

**NOTE** The tab length for endbell mounting varies depending upon what type motor is being built and it's important to imform us if you require non-standard tab lengths. click on the image above for further information on tab lengths

Options for Height of Can (Magnet Area):
() .316"
() .400"
() .420"
() .450"
() .470"
() .490"
() .505"
() .515"

[Cobalt Strap Bare Kit]

Bare Kits (can & mounted endbell)

All Camen Strap cans are available as bare kits - ie. can with mounted endbell. "Bare Kit" pricing is the same for all strap can types - both cobalt and I-15/C1
$59.95 Can and mounted endbell - can id & od ground

Magnets

[simple and complex magnet assemblies available] Camen Cobalt Magnets are available in a WIDE variety of configurations and are produced in our own shop from the very finest Cobalt Magnet Material available anywhere in the World. Multiple magnet configurations from the simplest quads to the most complex of "mega-multi's" can be purchased 'as pieces' or pre-assembled and ready to install as though they were singles..... or perhaps better yet - as complete Set-Ups as seen at the top of the page.

Among the offerings, many combinations can be devised by picking and choosing from among a variety of profiles including single magnets, quads, triples and magnet assemblies up to and exceeding 30 pieces. (In fact, there is even a 40 segment Camen motor known to exist:) We offer flat top, angle top, combo top..... you name it - we either offer it or it's just a software modification away.

Single Magnets are available in the following configurations:
Height (single magnet profiles):
() .275"
() .300"
() .316"
() .326"
() .360"
() .380"
() .390"
() .400"
() .418" (Grp 27Lite)
() .450"
() .485"

Quad, Triple, 8, 10, 12, 14, 16, 18, 20, & 24 segment magnets are considered routine at this point and are available in a "veritable plethora" of thickness, height, length and configuration options to serve virtually every Cobalt Motor type and requirement. If you have a Cobalt Magnet need, we have a solution. e-mail joel_camen@yahoo.com

Camen Magnets are available in the following standard lengths:
() .260"
() .300"
() .330"
() .350"
() .380"
() .400"
() .440"
virtually any length is possible.... Inquire for non-standard



CERAMIC MOTOR COMPONENTS

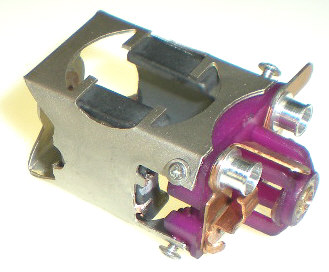

[Kamen C-Can Set-up] [Kamen DEMON 16-D Set-UP]











KAMEN 16-D and C-Can Motor Components

We are proud to offer the "Kamen" line of Ceramic Motor Components incorporating both C-Can and 16-D set-ups, Components and pieces. These offerings are among the finest available in the world for this class of racing. Please choose from the following:

#K-101 - $26.50 Complete C-Can Set-Up
#K-102 - $26.50 Complete C-Can Set-Up - lighter - shorter - faster - BETTER!
#K-600 -- 29.50 Kamen "Demon" 16d Set-Up
#K-201 --- 9.95 Nickel Plated C-Can
#K-300 --- 4.95 C-Can Endbell - Extra stiff and sturdy
#K-350 -- 11.95 C-Can Endbell with all hardware
#K-401 --- 6.95 Brush Hood/Backing plate kit (for both C & D can endbells)
#K-411 --- 4.95 Brush Hoods w/incorporated buss-bar (for both C & D can endbells)
#K-421 --- 2.49 Backing Plate for brush hood/buss-bar (for both C & D can endbells)
#K-430 --- 9.95 Complete hardware kit w/screws and posts (for both C & D can endbells)
#K-501 -- 12.95 Kamen C-Can Magnets
#K-501m - 17.95 Kamen C-Can Magnets - Matched
#K-550 -- 10.95 Kamen "Demon" 16D Magnets
#K-620 --- 9.95 Kamen "Demon" 16d Can
#K-630 --- 4.95 Kamen "Demon" 16d Endbell plastic

International 15 or C-1

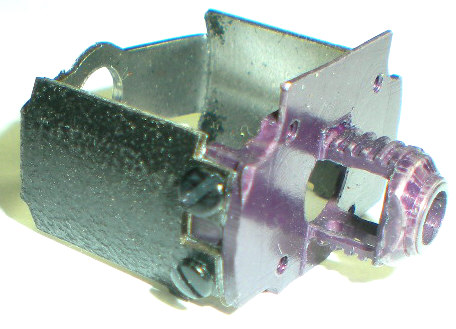

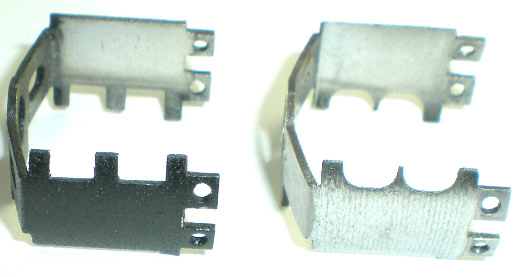

[International 15 Bare Kit] [International 15 Cans]
54.95 - Rover Int 15 or C1 Bare Kit - can not ground
59.95 - Rover Int 15 or C1 Bare Kit - can id & od ground
24.95 - Rover Int 15 or C1 Can only - can not ground
34.95 - Rover Int 15 or C1 Can only - can id & od ground
#1416.10 $24.95 Rover Endbell - International 15 or C-1



CAMEN MISC MOTOR PARTS

#1490.10 --* 2.94 - Teflon insulators for endbell hardware screws
#1580.030 -**23.70 - Lathe produced Long Motor Washer .030" length
#1580.035 -**23.70 - Lathe produced Long Motor Washer .035" length small diameter - fits inside comm caps
#1580.060 -**23.70 - Lathe Produced Long Motor Washer .060" length
#1520.10 --* 5.94 - Aluminum Spring Posts
#1560.70 --- 9.00 - (24 PCS) 0-80 X 3/16" hex cap head Stainless machine screw (for spring post)
#1572.10 --- 9.00 - (24 PCS) 0-80 X 1/8" Black Pan Head alum screws
#1620.10 --*29.70 - Double OverHead Springs (regular tension)
#1620.20 --*29.70 - Double OverHead Springs (light tension)
#1620.30 --*29.70 - Double OverHead Springs (Heavy tension) (BACK IN STOCK a/o 05/12)
#1620.40 --*29.70 - Double OverHead Springs (Super Heavy tension)
#1640.10 --* 5.94 - Teflon Spring Insulation (Purple)
#1680.10 --* 5.94 - Shunt Wire
#1700.20 -- 15.00 - 5MM Unflanged Bearing

* NOTE -- for items with asterisk (*), price denotes card of 6 items (or pairs where applicable)
for items with double asterisks (**), price denotes card of 6 packs with 6 items per pack
